Task Center API

Task Center allows you to organize manual tasks into different queues of work and control who can access them. They are often used in concert with Workflows. For more background on Task Center, please see the Knowledge Base.

Get Queues

Returns all queues the user has access to. Code Example

const getQueues = async (combineAttributes = true, archived = false) => {
  const queues = await domo.get(
    `/domo/queues/v1/?combineAttributes=${combineAttributes}&archived=${archived}`,
  );
  return queues;
};

const queues = getQueues();

HTTP Request

GET /domo/queues/v1/?combineAttributes={boolean}&archived={boolean}

HTTP Response Returns a list of all queue objects the user has access to.

HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8

[
    {
        "id": "168ecd84-4a15-45f6-89d9-021fbbce0481",
        "name": "Review Airplane Part Action Items",
        "description": "Human review of AI generated recommendations for QA process improvements based on product defects in manufacturing QA.",
        "active": true,
        "taskLevelFiltersEnabled": true,
        "taskLevelFilters": null,
        "owner": "8811501",
        "createdBy": "8811501",
        "createdOn": "2023-10-18T14:48:23.314Z",
        "updatedBy": "8811501",
        "updatedOn": "2023-10-18T14:48:23.314Z"
    }
]

Get Queue by ID

Returns a queue by ID. Code Example

const getQueueByID = async (queueId) => {
  const queue = await domo.get(`/domo/queues/v1/${queueId}`);
  return queue;
};

const queue = getQueueByID('168ecd84-4a15-45f6-89d9-021fbbce0481');

HTTP Request

GET /domo/queues/v1/{queueId}

HTTP Response Returns the queue object based on the queueId specified.

HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8

{
    "id": "168ecd84-4a15-45f6-89d9-021fbbce0481",
    "name": "Review Airplane Part Action Items",
    "description": "Human review of AI generated recommendations for QA process improvements based on product defects in manufacturing QA.",
    "active": true,
    "taskLevelFiltersEnabled": true,
    "taskLevelFilters": null,
    "owner": "8811501",
    "createdBy": "8811501",
    "createdOn": "2023-10-18T14:48:23.314Z",
    "updatedBy": "8811501",
    "updatedOn": "2023-10-18T14:48:23.314Z"
}

Get Tasks

Returns tasks based on the filters provided in the body. If the body is an empty object, it returns all tasks the user has access to. Code Example

const body = {
  queueId: ['168ecd84-4a15-45f6-89d9-021fbbce0481'],
  displayType: ['ENIGMA_FORM', 'EMAIL', 'UNKNOWN'],
  status: ['OPEN', 'COMPLETED', 'VOIDED'],
  createdOn: [['2023-10-04T12:22:54.239Z', '2024-01-02T13:22:54.239Z']],
};

const getTasks = async (body) => {
  const queue = await domo.post(
    `/domo/queues/v1/tasks/list?render=true&renderParts=NAME,DESCRIPTION,MAPPING,METADATA,VERSIONS`,
    body,
  );
  return queue;
};

const tasks = getTasks(body);

HTTP Request

POST /domo/queues/v1/tasks/list?render={boolean}&renderParts={NAME, DESCRIPTION, MAPPING, METADATA, VERSIONS}

Request Body The request body accepts an object containing filters to apply to the request for tasks. All properties are optional and the body can be passed as an empty object to return all tasks.

Property Name	Type	Required	Description
queueId	String	Optional	An array of queue ids.
displayType	String	Optional	An array of display types for tasks. Options are `ENIGMA_FORM`, `EMAIL`, `UNKNOWN`.
status	String	Optional	An array of statuses. Options are `OPEN`, `COMPLETED`, `VOIDED`.
assignedBy	String	Optional	An array of user ids corresponding to the user that assigned the task to.
assignedTo	String	Optional	An array of user ids corresponding to the user that the task was assigned to.
createdOn	DateTime	Optional	An array containing an array with two elements: a start datetime and and end datetime, which define the createdOn date range. E.g. `[["2023-10-04T12:22:54.239Z","2024-01-02T13:22:54.239Z"]]`
createdBy	String	Optional	An array of user ids corresponding to the user that created the task.
assignedOn	DateTime	Optional	An array containing an array with two elements: a start datetime and and end datetime, which define the assigedOn date range.
updatedOn	DateTime	Optional	An array containing an array with two elements: a start datetime and and end datetime, which define the updatedOn date range.
completedOn	DateTime	Optional	An array containing an array with two elements: a start datetime and and end datetime, which define the completedOn date range.
completedBy	String	Optional	An array of user ids corresponding to the user that completed the task.
orderByString	String	Optional	An array of strings corresponding to the properties from this body that the list of tasks should be ordered by.
version	String	Optional	An array version numbers to filter by

HTTP Response Returns a list of tasks.

HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8

[
    {
        "id": "18OCT23_1JUTZM",
        "attributes": [],
        "queueId": "168ecd84-4a15-45f6-89d9-021fbbce0481",
        "version": 1,
        "createdOn": "2023-10-18T15:23:22.991Z",
        "createdBy": "8811501",
        "updatedOn": "2023-11-28T16:18:29.716Z",
        "updatedBy": "8811501",
        "completedOn": null,
        "completedBy": null,
        "assignedOn": "2023-10-18T15:23:22.991Z",
        "assignedBy": "8811501",
        "assignedTo": "8811501",
        "assigneeType": "USER",
        "lockedOn": null,
        "lockedBy": null,
        "status": "OPEN",
        "tags": [],
        "comments": [],
        "sourceSystem": "ODYSSEY",
        "sourceInfo": {
            "modelId": "6a701240-76bf-4b9a-8145-199156b371cc",
            "modelVersion": "1.2.0",
            "instanceId": "99d0d944-1d90-4622-8a49-2878b37fda10",
            "deploymentId": "0fa42581-918b-4ba4-b77f-356c55735e52",
            "instanceCreatedBy": "8811501",
            "taskKey": "6755399651689301",
            "workflowInstanceId": "6755399651689244",
            "flowNodeId": "iVpiDJGGzWIPilg",
            "elementInstanceKey": "6755399651689298"
        },
        "displayType": "ENIGMA_FORM",
        "displayId": "cce35d38-95bc-4f87-ba92-849affb13c78",
        "displayEntity": {
            "id": "cce35d38-95bc-4f87-ba92-849affb13c78",

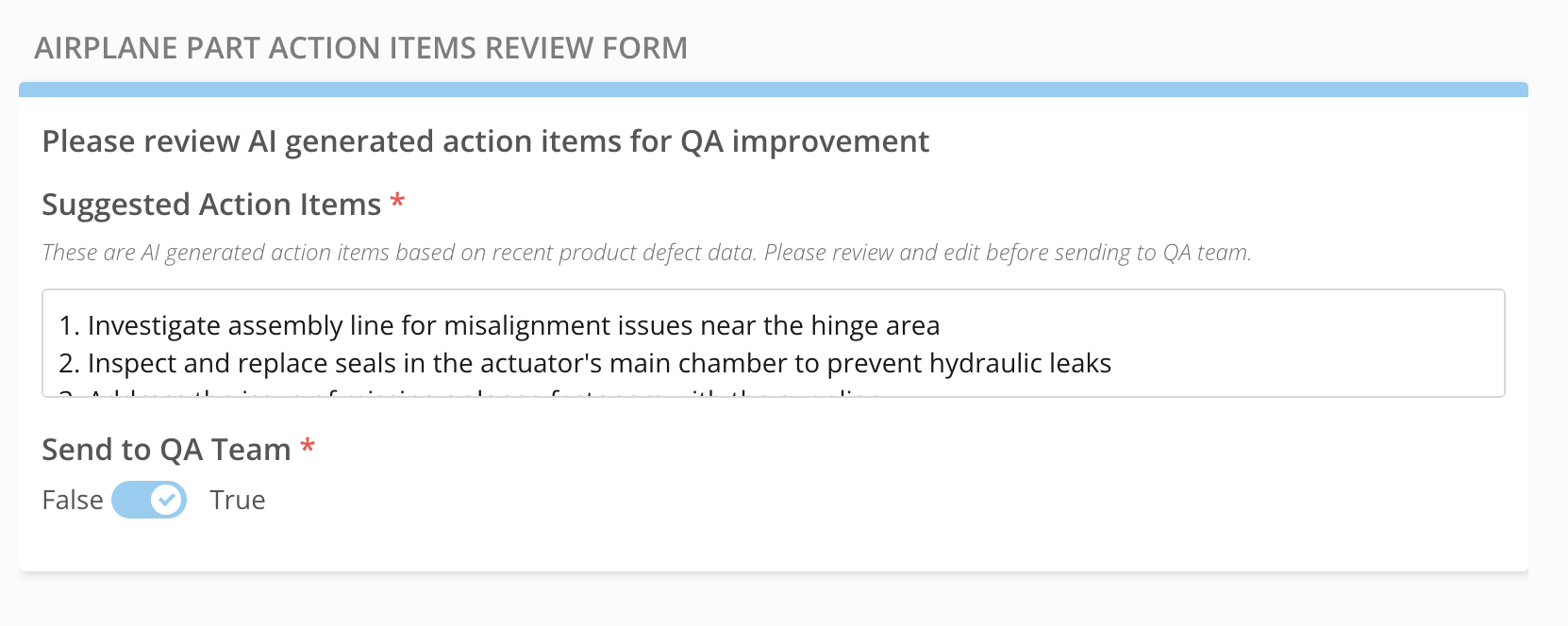

            "name": "Airplane Part Action Items Review Form",
            "description": "",
            "settings": {},
            "createdBy": "8811501",
            "createdOn": "2023-10-18T15:03:10.728Z",
            "updatedBy": "8811501",
            "updatedOn": "2023-10-18T15:03:57.589Z",
            "version": "1.0.0",
            "sections": [
                {
                    "id": "d7186dcf-2b17-4124-b0d1-d69f0c1bcec7",
                    "title": "Please review AI generated action items for QA improvement",
                    "fields": [
                        {
                            "id": "8e9cf127-e4a3-40f5-bd2e-31a80b1e31a5",
                            "label": "Suggested Action Items",
                            "description": "These are AI generated action items based on recent product defect data. Please review and edit before sending to QA team.",
                            "optional": false,
                            "fieldType": "PARAGRAPH",
                            "dataType": "text",
                            "acceptsInput": true,
                            "acceptsOutput": true,
                            "options": {
                                "values": []
                            },
                            "alias": "Suggested_Action_Items",
                            "isList": false,
                            "useExternalValues": false
                        },
                        {
                            "id": "ca23a591-f080-430e-a9c7-83673fe963ac",
                            "label": "Send to QA Team",
                            "optional": false,
                            "fieldType": "SINGLE_CHOICE",
                            "dataType": "boolean",
                            "acceptsInput": false,
                            "acceptsOutput": true,
                            "options": {
                                "values": []
                            },
                            "value": false,
                            "alias": "Send_to_QA_Team",
                            "isList": false,
                            "useExternalValues": false
                        }
                    ]
                }
            ],
            "releasedOn": "2023-10-18T15:03:57.785Z"
        },
        "contract": {
            "input": [
                {
                    "name": "Suggested_Action_Items",
                    "displayName": "Suggested_Action_Items",
                    "type": "text",
                    "required": true,
                    "list": false,
                    "validValues": null
                }
            ],
            "output": [
                {
                    "name": "Suggested_Action_Items",
                    "displayName": null,
                    "type": "text",
                    "required": true,
                    "list": false,
                    "validValues": null
                },
                {
                    "name": "Send_to_QA_Team",
                    "displayName": null,
                    "type": "boolean",
                    "required": true,
                    "list": false,
                    "validValues": null
                }
            ]
        },
        "inputVariables": {
            "Suggested_Action_Items": "1. Investigate assembly line for misalignment issues near the hinge area\n2. Inspect and replace seals in the actuator's main chamber to prevent hydraulic leaks\n3. Address the issue of missing or loose fasteners with the supplier\n"
        },
        "outputVariables": {}
    },
    {
        "id": "18OCT23_Y9A3HR",
        "attributes": [],
        "queueId": "168ecd84-4a15-45f6-89d9-021fbbce0481",
        "version": 1,
        "createdOn": "2023-10-18T15:23:24.945Z",
        "createdBy": "8811501",
        "updatedOn": "2023-10-18T15:23:24.945Z",
        "updatedBy": "8811501",
        "completedOn": null,
        "completedBy": null,
        "assignedOn": "2023-10-18T15:23:24.945Z",
        "assignedBy": "8811501",
        "assignedTo": "8811501",
        "assigneeType": "USER",
        "lockedOn": null,
        "lockedBy": null,
        "status": "OPEN",
        "tags": [],
        "comments": [],
        "sourceSystem": "ODYSSEY",
        "sourceInfo": {
            "modelId": "6a701240-76bf-4b9a-8145-199156b371cc",
            "modelVersion": "1.2.0",
            "instanceId": "6e75dc76-47fa-4fa6-b157-3dc71e08d32b",
            "deploymentId": "0fa42581-918b-4ba4-b77f-356c55735e52",
            "instanceCreatedBy": "8811501",
            "taskKey": "2251800022518420",
            "workflowInstanceId": "2251800022518320",
            "flowNodeId": "iVpiDJGGzWIPilg",
            "elementInstanceKey": "2251800022518417"
        },
        "displayType": "ENIGMA_FORM",
        "displayId": "cce35d38-95bc-4f87-ba92-849affb13c78",
        "displayEntity": {
            "id": "cce35d38-95bc-4f87-ba92-849affb13c78",
            "name": "Airplane Part Action Items Review Form",
            "description": "",
            "settings": {},
            "createdBy": "8811501",
            "createdOn": "2023-10-18T15:03:10.728Z",
            "updatedBy": "8811501",
            "updatedOn": "2023-10-18T15:03:57.589Z",
            "version": "1.0.0",
            "sections": [
                {
                    "id": "d7186dcf-2b17-4124-b0d1-d69f0c1bcec7",
                    "title": "Please review AI generated action items for QA improvement",
                    "fields": [
                        {
                            "id": "8e9cf127-e4a3-40f5-bd2e-31a80b1e31a5",
                            "label": "Suggested Action Items",
                            "description": "These are AI generated action items based on recent product defect data. Please review and edit before sending to QA team.",
                            "optional": false,
                            "fieldType": "PARAGRAPH",
                            "dataType": "text",
                            "acceptsInput": true,
                            "acceptsOutput": true,
                            "options": {
                                "values": []
                            },
                            "alias": "Suggested_Action_Items",
                            "isList": false,
                            "useExternalValues": false
                        },
                        {
                            "id": "ca23a591-f080-430e-a9c7-83673fe963ac",
                            "label": "Send to QA Team",
                            "optional": false,
                            "fieldType": "SINGLE_CHOICE",
                            "dataType": "boolean",
                            "acceptsInput": false,
                            "acceptsOutput": true,
                            "options": {
                                "values": []
                            },
                            "value": false,
                            "alias": "Send_to_QA_Team",
                            "isList": false,
                            "useExternalValues": false
                        }
                    ]
                }
            ],
            "releasedOn": "2023-10-18T15:03:57.785Z"
        },
        "contract": {
            "input": [
                {
                    "name": "Suggested_Action_Items",
                    "displayName": "Suggested_Action_Items",
                    "type": "text",
                    "required": true,
                    "list": false,
                    "validValues": null
                }
            ],
            "output": [
                {
                    "name": "Suggested_Action_Items",
                    "displayName": null,
                    "type": "text",
                    "required": true,
                    "list": false,
                    "validValues": null
                },
                {
                    "name": "Send_to_QA_Team",
                    "displayName": null,
                    "type": "boolean",
                    "required": true,
                    "list": false,
                    "validValues": null
                }
            ]
        },
        "inputVariables": {
            "Suggested_Action_Items": "1. Investigate assembly line for misalignment issues near the hinge area\n2. Inspect and replace seals in the actuator's main chamber to prevent hydraulic leaks\n3. Address the issue of missing or loose fasteners with the supplier\n"
        },
        "outputVariables": {}
    }
]

Get Task by ID

Returns a task by its id.

Code Example

const getTaskByID = async (queueId, taskId) => {
  const task = await domo.get(
    `/domo/queues/v1/${queueId}/tasks/${taskId}?render=true`,
  );
  return task;
};

const task = getTaskByID(
  '168ecd84-4a15-45f6-89d9-021fbbce0481',
  '18OCT23_1JUTZM',
);

HTTP Request

GET /domo/queues/v1/{queueId}/tasks/{taskId}?render={boolean}

HTTP Response Returns the task object based requested.

HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8

{
    "id": "18OCT23_1JUTZM",
    "attributes": [],
    "queueId": "168ecd84-4a15-45f6-89d9-021fbbce0481",
    "version": 1,
    "createdOn": "2023-10-18T15:23:22.991Z",
    "createdBy": "8811501",
    "updatedOn": "2023-11-28T16:18:29.716Z",
    "updatedBy": "8811501",
    "completedOn": null,
    "completedBy": null,
    "assignedOn": "2023-10-18T15:23:22.991Z",
    "assignedBy": "8811501",
    "assignedTo": "8811501",
    "assigneeType": "USER",
    "lockedOn": null,
    "lockedBy": null,
    "status": "OPEN",
    "tags": [],
    "comments": [],
    "sourceSystem": "ODYSSEY",
    "sourceInfo": {
        "modelId": "6a701240-76bf-4b9a-8145-199156b371cc",
        "modelVersion": "1.2.0",
        "instanceId": "99d0d944-1d90-4622-8a49-2878b37fda10",
        "deploymentId": "0fa42581-918b-4ba4-b77f-356c55735e52",
        "instanceCreatedBy": "8811501",
        "taskKey": "6755399651689301",
        "workflowInstanceId": "6755399651689244",
        "flowNodeId": "iVpiDJGGzWIPilg",
        "elementInstanceKey": "6755399651689298"
    },
    "displayType": "ENIGMA_FORM",
    "displayId": "cce35d38-95bc-4f87-ba92-849affb13c78",
    "displayEntity": {
        "id": "cce35d38-95bc-4f87-ba92-849affb13c78",
        "name": "Airplane Part Action Items Review Form",
        "description": "",
        "settings": {},
        "createdBy": "8811501",
        "createdOn": "2023-10-18T15:03:10.728Z",
        "updatedBy": "8811501",
        "updatedOn": "2023-10-18T15:03:57.589Z",
        "version": "1.0.0",
        "sections": [
            {
                "id": "d7186dcf-2b17-4124-b0d1-d69f0c1bcec7",
                "title": "Please review AI generated action items for QA improvement",
                "fields": [
                    {
                        "id": "8e9cf127-e4a3-40f5-bd2e-31a80b1e31a5",
                        "label": "Suggested Action Items",
                        "description": "These are AI generated action items based on recent product defect data. Please review and edit before sending to QA team.",
                        "optional": false,
                        "fieldType": "PARAGRAPH",
                        "dataType": "text",
                        "acceptsInput": true,
                        "acceptsOutput": true,
                        "options": {
                            "values": []
                        },
                        "alias": "Suggested_Action_Items",
                        "isList": false,
                        "useExternalValues": false
                    },
                    {
                        "id": "ca23a591-f080-430e-a9c7-83673fe963ac",
                        "label": "Send to QA Team",
                        "optional": false,
                        "fieldType": "SINGLE_CHOICE",
                        "dataType": "boolean",
                        "acceptsInput": false,
                        "acceptsOutput": true,
                        "options": {
                            "values": []
                        },
                        "value": false,
                        "alias": "Send_to_QA_Team",
                        "isList": false,
                        "useExternalValues": false
                    }
                ]
            }
        ],
        "releasedOn": "2023-10-18T15:03:57.785Z",
        "userPermissions": []
    },
    "contract": {
        "input": [
            {
                "name": "Suggested_Action_Items",
                "displayName": "Suggested_Action_Items",
                "type": "text",
                "required": true,
                "list": false,
                "validValues": null
            }
        ],
        "output": [
            {
                "name": "Suggested_Action_Items",
                "displayName": null,
                "type": "text",
                "required": true,
                "list": false,
                "validValues": null
            },
            {
                "name": "Send_to_QA_Team",
                "displayName": null,
                "type": "boolean",
                "required": true,
                "list": false,
                "validValues": null
            }
        ]
    },
    "inputVariables": {
        "Suggested_Action_Items": "1. Investigate assembly line for misalignment issues near the hinge area\n2. Inspect and replace seals in the actuator's main chamber to prevent hydraulic leaks\n3. Address the issue of missing or loose fasteners with the supplier\n"
    },
    "outputVariables": {}
}

Save Task Progress

Saves current task values given in the body, which contains the key value pairs for each input property of the task in question. Code Example

const body = {
  Suggested_Action_Items:
    "1. Investigate assembly line for misalignment issues near the hinge area\n2. Inspect and replace seals in the actuator's main chamber to prevent hydraulic leaks\n3. Address the issue of missing or loose fasteners with the supplier\n",
  Send_to_QA_Team: true,
};

const saveTask = async (queueId, taskId, body) => {
  const task = await domo.put(
    `/domo/queues/v1/${queueId}/tasks/${taskId}/outputs`,
    body,
  );
  return task;
};

const task = saveTask(
  '168ecd84-4a15-45f6-89d9-021fbbce0481',
  '18OCT23_1JUTZM',
  body,
);

HTTP Request

PUT /domo/queues/v1/{queueId}/tasks/{taskId}/outputs

Request Body The request body accepts an object containing key value pairs for each input property of the task in question. HTTP Response The current saved state of the task.

{
  "id": "18OCT23_1JUTZM",
  "attributes": [],
  "queueId": "168ecd84-4a15-45f6-89d9-021fbbce0481",
  "version": 1,
  "createdOn": "2023-10-18T15:23:22.991Z",
  "createdBy": "8811501",
  "updatedOn": "2024-01-02T13:52:27.182Z",
  "updatedBy": "8811501",
  "completedOn": null,
  "completedBy": null,
  "assignedOn": "2023-10-18T15:23:22.991Z",
  "assignedBy": "8811501",
  "assignedTo": "8811501",
  "assigneeType": "USER",
  "lockedOn": "2024-01-02T13:47:53.613Z",
  "lockedBy": "8811501",
  "status": "OPEN",
  "tags": [],
  "comments": [],
  "sourceSystem": "ODYSSEY",
  "sourceInfo": {
    "modelId": "6a701240-76bf-4b9a-8145-199156b371cc",
    "modelVersion": "1.2.0",
    "instanceId": "99d0d944-1d90-4622-8a49-2878b37fda10",
    "deploymentId": "0fa42581-918b-4ba4-b77f-356c55735e52",
    "instanceCreatedBy": "8811501",
    "taskKey": "6755399651689301",
    "workflowInstanceId": "6755399651689244",
    "flowNodeId": "iVpiDJGGzWIPilg",
    "elementInstanceKey": "6755399651689298"
  },
  "displayType": "ENIGMA_FORM",
  "displayId": "cce35d38-95bc-4f87-ba92-849affb13c78",
  "displayEntity": null,
  "contract": {
    "input": [
      {
        "name": "Suggested_Action_Items",
        "displayName": "Suggested_Action_Items",
        "type": "text",
        "required": true,
        "list": false,
        "validValues": null
      }
    ],
    "output": [
      {
        "name": "Suggested_Action_Items",
        "displayName": null,
        "type": "text",
        "required": true,
        "list": false,
        "validValues": null
      },
      {
        "name": "Send_to_QA_Team",
        "displayName": null,
        "type": "boolean",
        "required": true,
        "list": false,
        "validValues": null
      }
    ]
  },
  "inputVariables": {
    "Suggested_Action_Items": "1. Investigate assembly line for misalignment issues near the hinge area\n2. Inspect and replace seals in the actuator's main chamber to prevent hydraulic leaks\n3. Address the issue of missing or loose fasteners with the supplier\n"
  },
  "outputVariables": {
    "Suggested_Action_Items": "1. Investigate assembly line for misalignment issues near the hinge area\n2. Inspect and replace seals in the actuator's main chamber to prevent hydraulic leaks\n3. Address the issue of missing or loose fasteners with the supplier\n",
    "Send_to_QA_Team": false
  }
}

Complete Task

Completes the task with the values given in the body. Code Example

const body = {
  Suggested_Action_Items:
    "1. Investigate assembly line for misalignment issues near the hinge area\n2. Inspect and replace seals in the actuator's main chamber to prevent hydraulic leaks\n3. Address the issue of missing or loose fasteners with the supplier\n",
  Send_to_QA_Team: true,
};

const completeTask = async (queueId, taskId, body) => {
  const task = await domo.post(
    `/domo/queues/v1/${queueId}/tasks/${taskId}/complete?version=1`,
    body,
  );
  return task;
};

const task = completeTask(
  '168ecd84-4a15-45f6-89d9-021fbbce0481',
  '24OCT23_CI27D1',
  body,
);

HTTP Request

POST /domo/queues/v1/{queueId}/tasks/{taskId}/complete?version={VERSION}

Request Body The request body accepts an object containing key value pairs for each input property of the task in question. HTTP Response The completed task.

​Get Queues

​Get Queue by ID

​Get Tasks

​Get Task by ID

​Returns a task by its id.

​Save Task Progress

​Complete Task

Get Queues

Get Queue by ID

Get Tasks

Get Task by ID

Returns a task by its id.

Save Task Progress

Complete Task
